Scrigno

Stove with self-cleaning pellet and biomass burner with eye-catching design characterized by the two “casket” doors and the serigraphed glass door. It uses the new high performance combustion chamber and maintains all the quietness and safety features of CS Thermos products, with the plus of the upper or rear flue header.

Hermetic closure of the fuel tank.

★ ★ ★ ★ ★

Technical data

Tipology: Stove
Fuel: Pellets / Biomass
Coating: Metal
Introduced heat output / to firebox: 9.9 kW
Nominal heat output (min÷max): 3.45 ÷ 8.07 kW
Heated volume: 80 ÷ 230 m³
Nominal performance: 90.72 %
CO emissions at 13% O²: 70 mg/Nm³
Power levels: 6
Flue gas outlet: Rear, Upper
Air ducting: No
Weight: 123 kg
Dimensions WxDxH: 46 x 49 x 106 cm
Pellet tank capacity: 12 kg
Flue gas output diameter: 80 mm

★ ★ ★ ★ ★

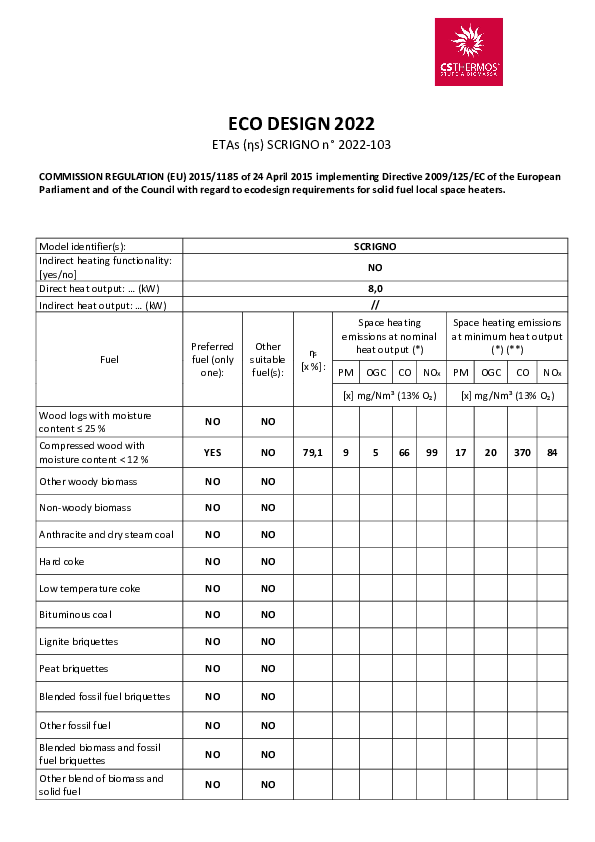

This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).

Feature

Two heating elements
Hermetically sealed pellet hopper
Mechanical safety devices with two manual reset thermostats and a pressure switch
A new combustion chamber
Option of horizontal or vertical flue gas outlet
Safety electrical safety devices: inductive sensors that constantly check the position of motors rotation; flue gas probe.
