Morgana Sx
The timeless wood-burning cooker with oven.
Faithful to its tradition, this cooker gives the magic of the hearth to your home.
Morgana, thanks to its particular construction, takes on a unique, linear, modern and minimalist form.
The quality of the materials used such as steel, glass and refractory bricks are a guarantee of resistance, reliability
and flexibility.
The combination of these components ensures excellent performance.
★
★
★
★
Technical data
Metallic Red
- Tipology
- Cooker
- Fuel
- Wood
- Coating
- Metal
- Depressione at the chimney
- 10 ÷ 12 Pa
- Introduced heat output / to firebox
- 7.02 kW
- Nominal heat output
- 6.5 kW
- Heated volume
- 80 ÷ 160 m³
- Nominal performance
- 92.6 %
- CO emissions at 13% O²
- 826 mg/Nm³
- Flue gas outlet
- Upper
- Air ducting
- No
- Weight
- 160 kg
- Dimensions WxDxH
- 80 x 60 x 85 cm
- Dimensions of the cooking oven WxDxH
- 41,2 x 40 x 22,3 cm
★
★
★
★
This product complies with the Class 4 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
Steel
Ivory
Black
Metallic Red
Steel
Ivory
Black
Feature
- 8mm thick AISI 430 steel cooking plate
- Large cooking oven with lighting and thermometer
- Primary and secondary air
- Double glazing: 1) ceramic glass with self-cleaning ventilation system; 2) "magic" panoramic aesthetic glass
- Combustion chamber and flue gas passages in steel-lined refractory bricks
Supplied Accessories
- Cooking oven lighting
- Rear profile on the cooking plate
- Poker
Accessories on demand
- Front handle
Plus
Cooker
Natural convection
Oven cooking
Oven light
Wood
Download
Certificate of Conformity
Star Rating (Italian Stardard)

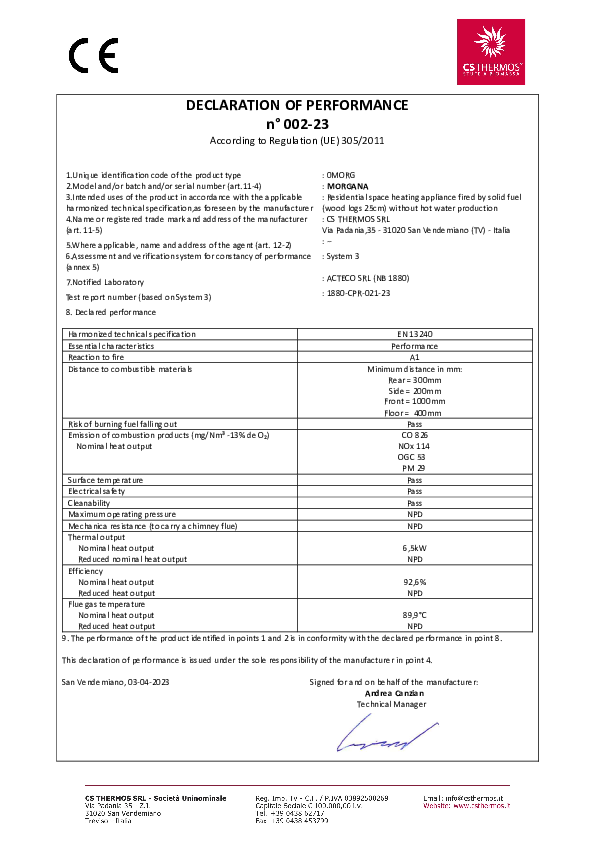

Dop

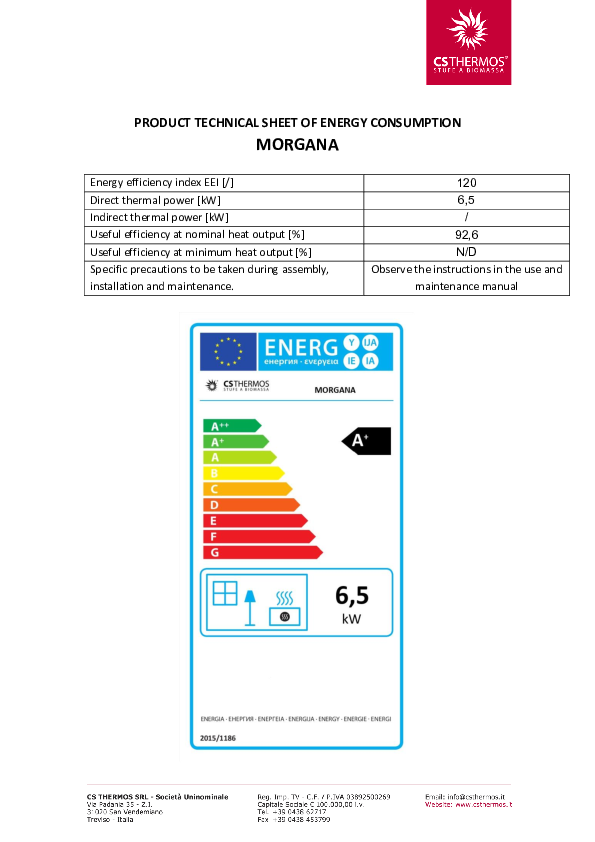

Energy label
