Cortina 10
A+
The elegant expression of fire
★
★
★
★
★
Technical data

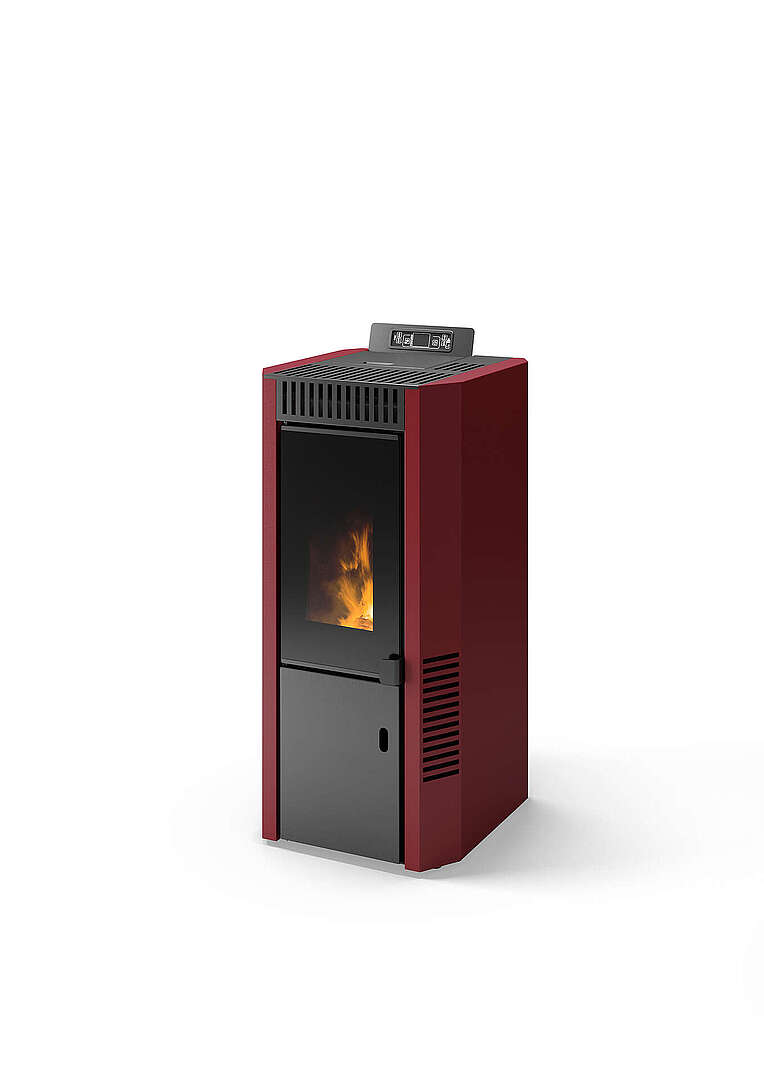

Rosso
- Tipology
- Stove
- Fuel
- Pellets
- Coating
- Metal
- Introduced heat output / to firebox (min÷max)
- 5.3 ÷ 10.8 kW
- Nominal heat output (min÷max)
- 5 ÷ 10.2 kW
- Heated volume
- 80 ÷ 290 m³
- Nominal performance
- 94 %
- Particulate matter
- 8 mg/Nm³
- CO emissions at 13% O²
- 80 mg/Nm³
- Power levels
- 5
- Flue gas outlet
- Rear, Upper
- Air ducting
- Yes
- Weight
- 82 kg

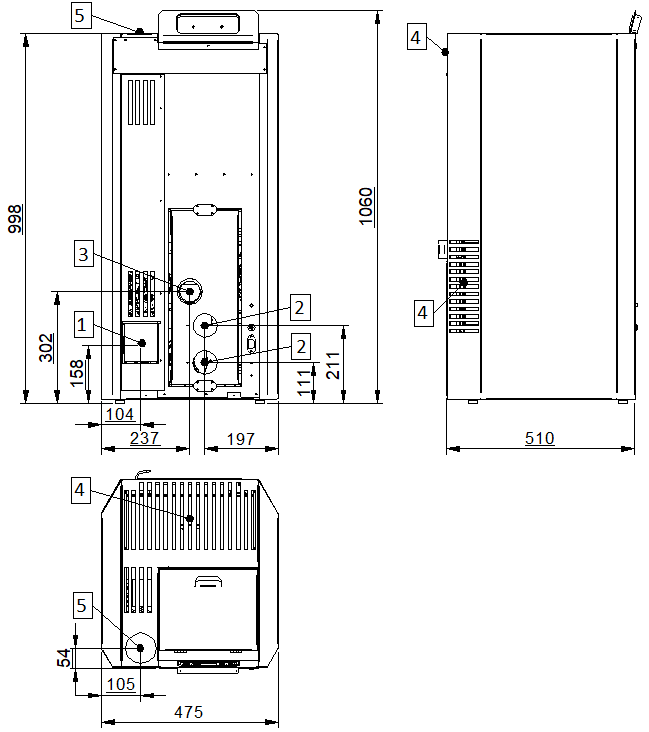

- Dimensions WxDxH
- 48 x 51 x 100 cm
- Pellet tank capacity
- 20 kg
- Flue gas output diameter
- 80 mm
★
★
★
★
★
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).

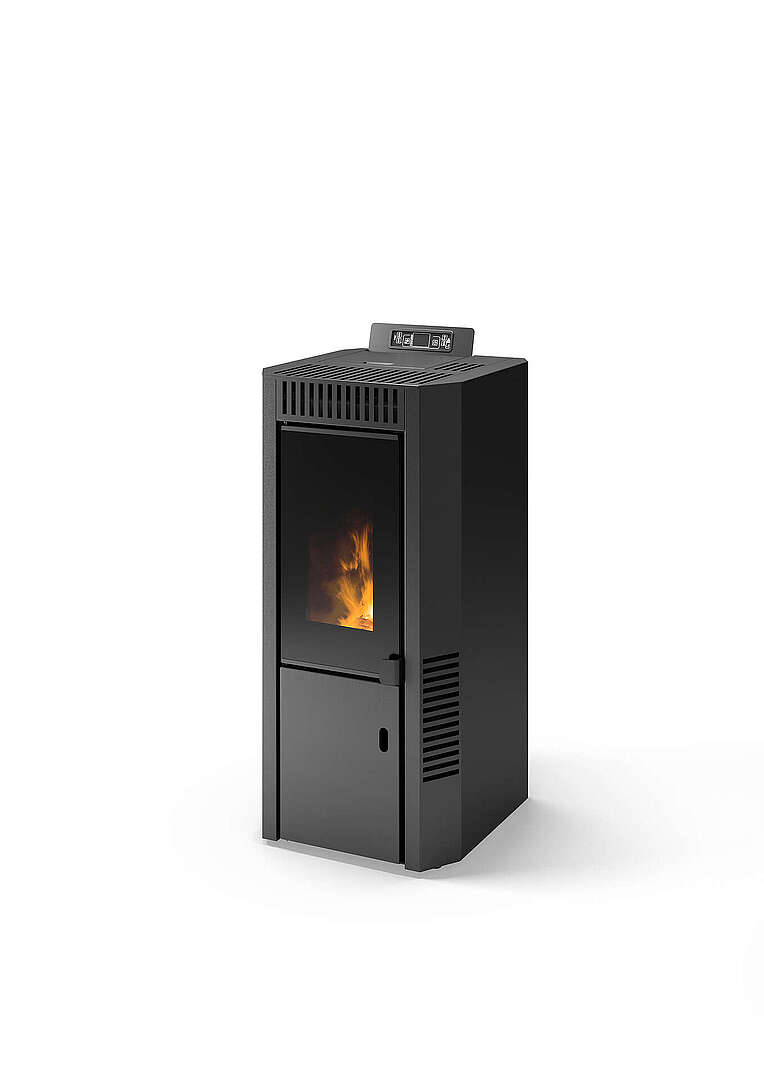

Nero

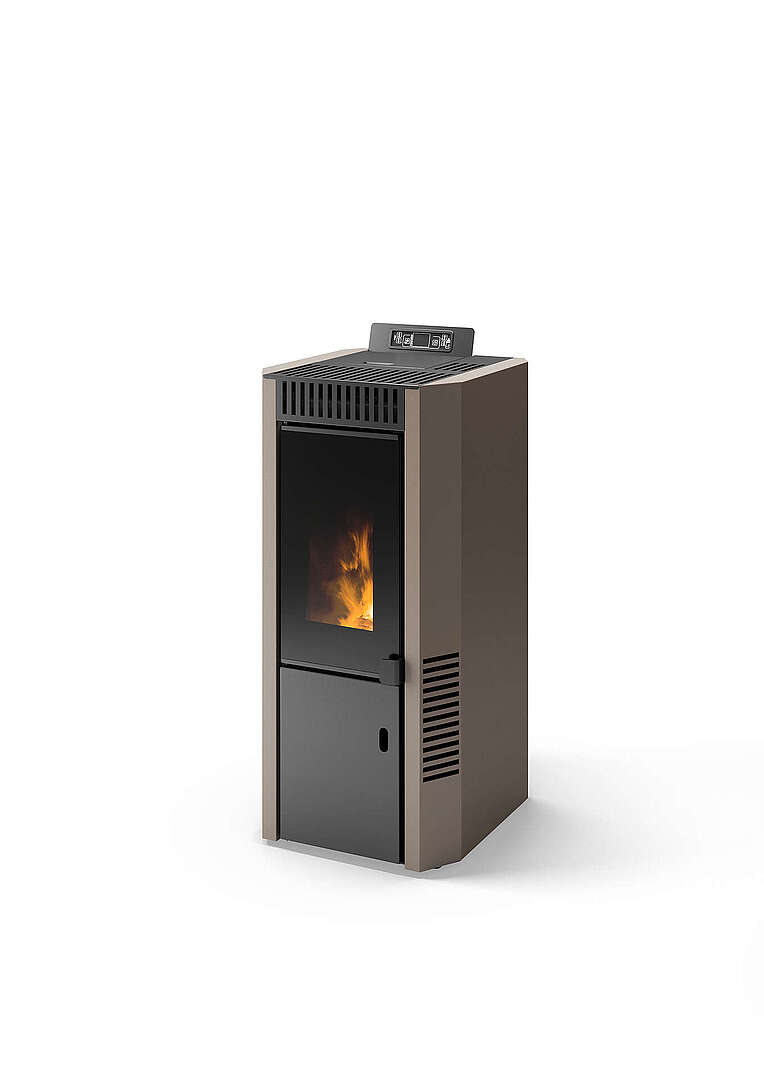

Tortora
Feature
- Tripla ventilazione di serie
- Doppia canalizzazione
- Hermetically sealed pellet hopper
- Robust structure
Supplied Accessories
- Ash drawer
Accessories on demand
- Wi-fi connection kit
- Remote control for switching on, regulating the power and the set temperature
Feature
Weekly timer
Horizontal or vertical flue gas outlet
Easy-to-clean exhaust
Large ash pan
Plus
Pellet
Air
Anti Blow System
Direct air with forced ventilation
Air intake from outside
Rear or top flue gas
Air Ducting System
Thermostat for air ducting
Maximum quietness
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 16510
Energy Class A+
Eco Design 2022
Conto Termico
Equivalent 7 Étoiles
Download
Brochure/Flyer
Brochure
Instruction manual
Certificate of Conformity
Star Rating (Italian Standard)

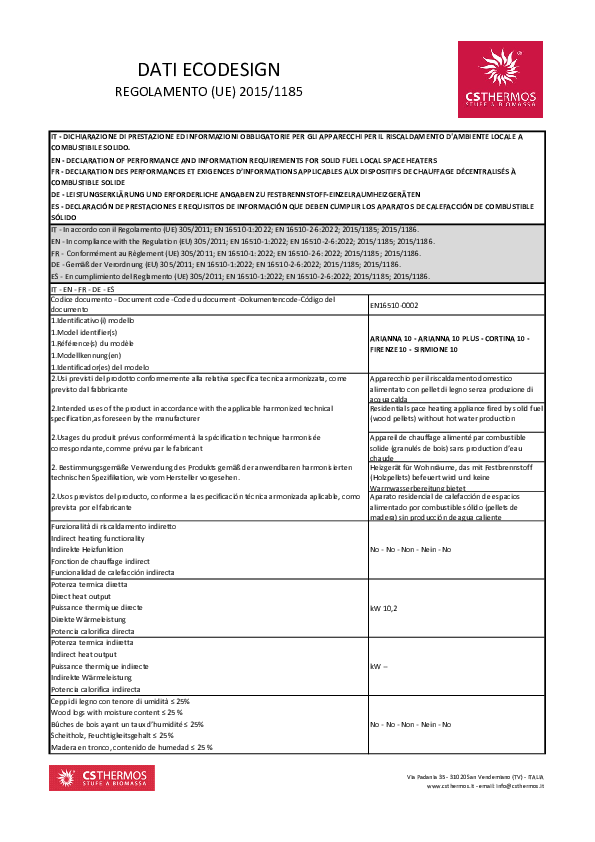

Dop
ECO DESIGN 2022
Energy Label
