Arianna 10
A+
Pure warmth and natural harmony
The new Arianna stove from CS Thermos is characterised by exclusive design, superb performance and unrivalled comfort. Low emissions and the latest innovations ensure personal wellbeing and protect the environment.
The heart of the Arianna stove: CS THERMOS’ patented, self-cleaning, ecological, multi-fuel burner. Designed to meet the highest standards of safety, this unique burner offers numerous advantages: 5 different pre-programmed fuel menus; ash discharge without shutting down the burner for reduced electrical energy consumption; dual igniter for shorter start-up times and guaranteed continuous functioning; dual screw feed to prevent back-firing to the hopper.
Technical data
Black
- Tipology
- Stove
- Fuel
- Pellets / Biomass
- Coating
- Metal
- Introduced heat output / to firebox
- 10.83 kW
- Nominal heat output (min÷max)
- 4.98 ÷ 10.16 kW
- Heated volume
- 80 ÷ 290 m³
- Nominal performance
- 93.85 %
- CO emissions at 13% O²
- 80 mg/Nm³
- Power levels
- 6
- Flue gas outlet
- Rear, Upper
- Air ducting
- Yes
- Weight
- 155 kg
- Dimensions WxDxH
- 57 x 56 x 120 cm
- Pellet tank capacity
- 20 kg
- Flue gas output diameter
- 80 mm
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
White
Red
Bronze
Feature
- Two heating elements
- Hermetically sealed pellet hopper
- Natural convection option on power settings 1 and 2
- Ductable with dedicated fan
- Robust structure up to 4 mm thick
- Mechanical safety devices with two manual reset thermostats and a pressure switch
- Safety electrical safety devices: inductive sensors that constantly check the position of motors rotation; flue gas probe.
Supplied Accessories
- "L" bar for ash cleaning
Accessories on demand
- Wi-Fi remote control via APP
- Wall-mounted room thermostat, allows air and temperature regulation in the ducted area.
Feature
Curved panoramic glass
Weekly timer
Horizontal or vertical flue gas outlet
Easy-to-clean heat exchangers
Easy-to-clean exhaust
Large ash pan
Simplified ordinary maintenance
Plus
Air
Backfire impossible
Anti Blow System
Direct air with forced ventilation
Air intake from outside
Rear or top flue gas
Multifuel patented burner
Air Ducting System
Thermostat for air ducting
Natural convection
Maximum quietness
Hermetic closure
Wi-Fi Smart Home
MDi (Mineral, Design, innovation)
Download
Brochure/Flyer
Brochure
Brochure WPS-WoodPelletSystem
Instruction manual
Certificate of Conformity
Star Rating (Italian Standard)

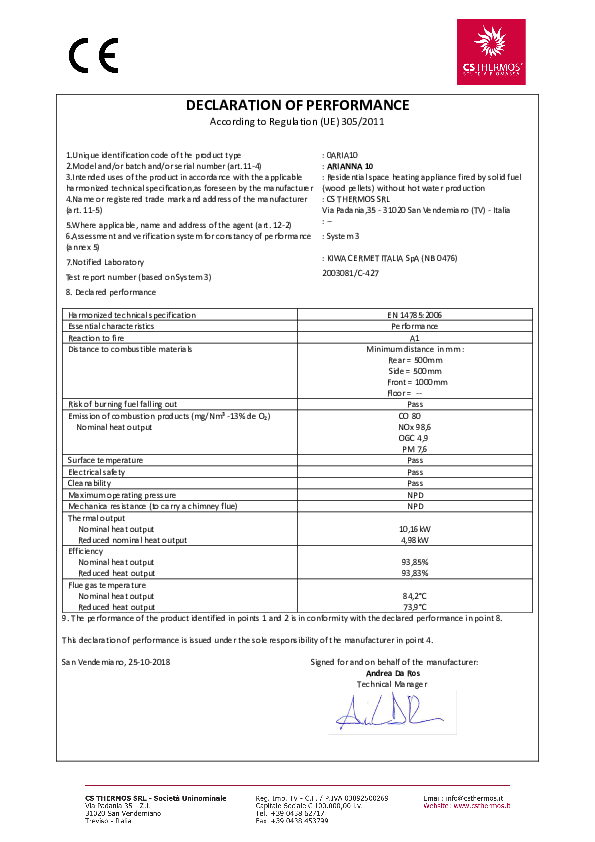

Dop

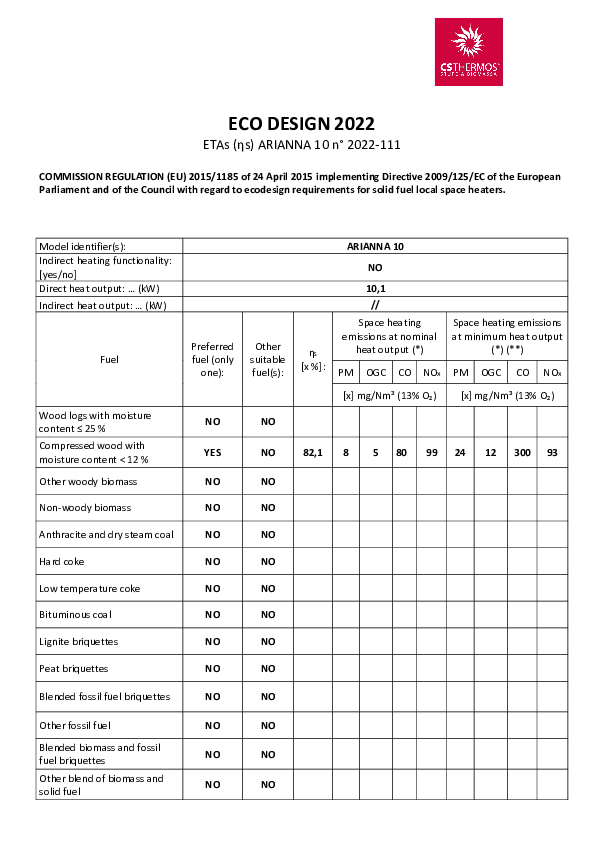

ECO DESIGN 2022

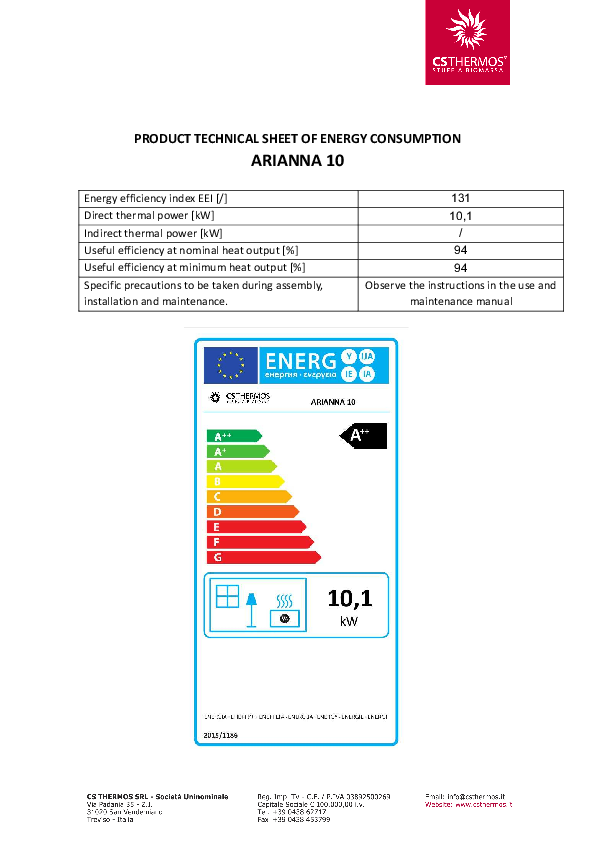

Energy Label
