Cortina 9
A+
A microcosm of natural wellbeing
The new stove from CS Thermos is characterised by exclusive design, superb performance and unrivalled comfort. Low emissions and the latest innovations ensure personal wellbeing and protect the environment.
★
★
★
★
★
Technical data
Nero
- Tipology
- Stove
- Fuel
- Pellets
- Coating
- Metal
- Introduced heat output / to firebox (min÷max)
- 4.5 ÷ 10.1 kW
- Nominal heat output (min÷max)
- 4.2 ÷ 9.3 kW
- Heated volume
- 80 ÷ 260 m³
- Nominal performance
- 92 %
- Particulate matter
- 9 mg/Nm³
- CO emissions at 13% O²
- 123 mg/Nm³
- Power levels
- 5
- Flue gas outlet
- Rear, Upper
- Air ducting
- Yes
- Weight
- 80 kg
- Dimensions WxDxH
- 48 x 51 x 100 cm
- Pellet tank capacity
- 15 kg
- Flue gas output diameter
- 80 mm
★
★
★
★
★
This product complies with the Class 5 Stars, according to the emission and performance requirements of the Decree of 7 November 2017, n°186 (Italy).
Rosso
Tortora
Feature
- Tripla ventilazione di serie
- Doppia canalizzazione
- Hermetically sealed pellet hopper
- Robust structure
Supplied Accessories
- Ash drawer
Accessories on demand
- Wi-fi connection kit
- Remote control for switching on, regulating the power and the set temperature
Feature
Weekly timer
Horizontal or vertical flue gas outlet
Large ash pan
Easy-to-clean exhaust
Plus
Pellet
Air
Anti Blow System
Direct air with forced ventilation
Air intake from outside
Air Ducting System
Thermostat for air ducting
Rear or top flue gas
Maximum quietness
Hermetic closure
Wi-Fi Smart Home
Certifications
CE EN 16510
Energy Class A+
Eco Design 2022
Conto Termico
Equivalent 7 Étoiles
Download
Brochure/Flyer
Brochure
Instruction manual
Certificate of Conformity
Star Rating (Italian Standard)
Dop

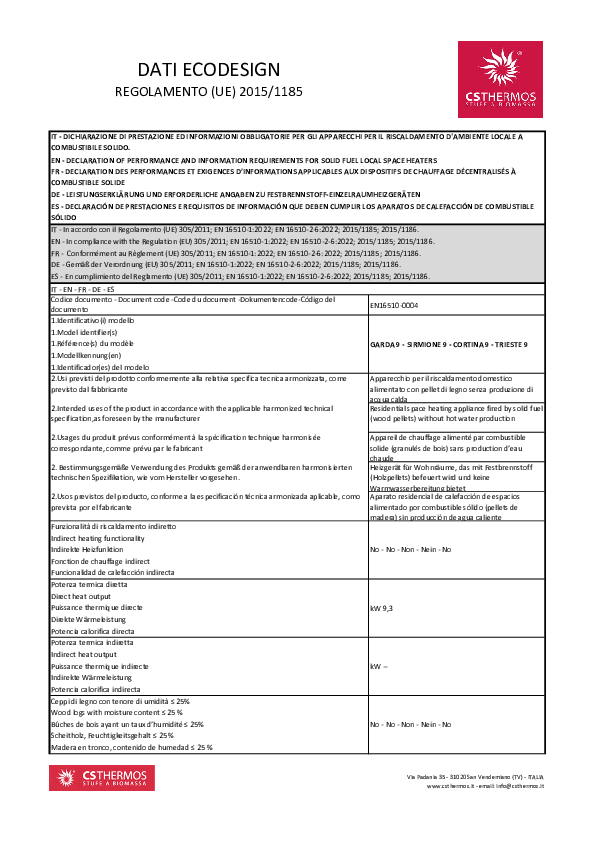

ECO DESIGN 2022
Energy Label
